−Diamond Kite Train− Ages:5-up
- When you fly a train of small
kites, you will see a different world in the sky.
- In the train kites, the diamond
shaped kites are most popular.
- To make the kites fly better, our
original parts are used.
|
The kit does not include the threads. |

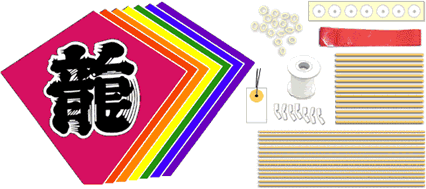

| Check the contents: |
| Polyethylene sheet |
70pcs. |
| Spar connector |
70pcs. |
| Center Spar(1.8×290L) |
140pcs. |
| Cross Spar(2.4×158L) |
140pcs. |
| Reinforced hole |
70pcs. |
| Tail |
73pcs. |
| Rubber band |
140pcs. |
| Thread(optional) |
1roll |
| Tag |
１pc. |
|
 Scotch tape to be prepared
by yourself. |
 |
Put the reinforced hole.
Put the hole on the sheet back to meet the hole position. |
|
 |
Attach the center spars.
Using scotch tape, attach the two center spars. |
|
 |
 |
 |
Put the spar connector.
Put the connector underneath the spars. |
Shift the connector.
Shift the connector downward between the hole and the taped. |
Insert the cross spar.
Insert the end of the spar into the connector and tape the other end while stretching
the sheet. |
 |
 |
 |
Insert another cross spar.
Take the same way. |
Mark the thread.
Mark the thread at the intervals of 1m. |
Thread.
Take off wire from tag. Using the wire,pass the thread through the enitire train
of kites and move each kite to one of the marked intervals. |
 |
 |
 |
Use the rubber band as
stopper.
Double the thread at the marked point and pass 2pcs of the bands through. |
Tie it.
As illustrated above, pull out the bands and tie it securely. |
Attach a tail.
Attach a tail to the sheet front with scotch tape. |
| At the final
stage, |
| 1. |
Double the amount of the
tails of the last three kites at the top of the
train.
This increases the stability of the train at the top. |
| 2. |

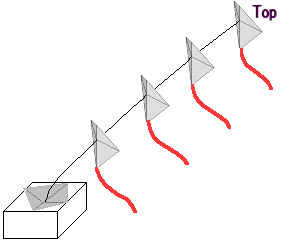

Prepare a storage box.
The box will not only be for storage,but neatly arranged kites in the box will
launch easier. |
| Flying train kite. |
 |
Prepare an anchor for the
train before you launch. |
|
Simply feed out the top kite
from the storage box. |
|
In heavy winds be careful
so that the kites do not feed out of the box so
fast that they are damaged. |
|
When you choose a flying site,consider that train
kite takes up a lot of air space.
Plenty of field downwind is preferable in case of an unexpected drop in the wind
and the train comes down. |
|
 |
|
 |
|
